97034305137 Front Left Air Suspension Shock Strut For Porsche Panamera 2010-2014 97034305134

Overview

Notes

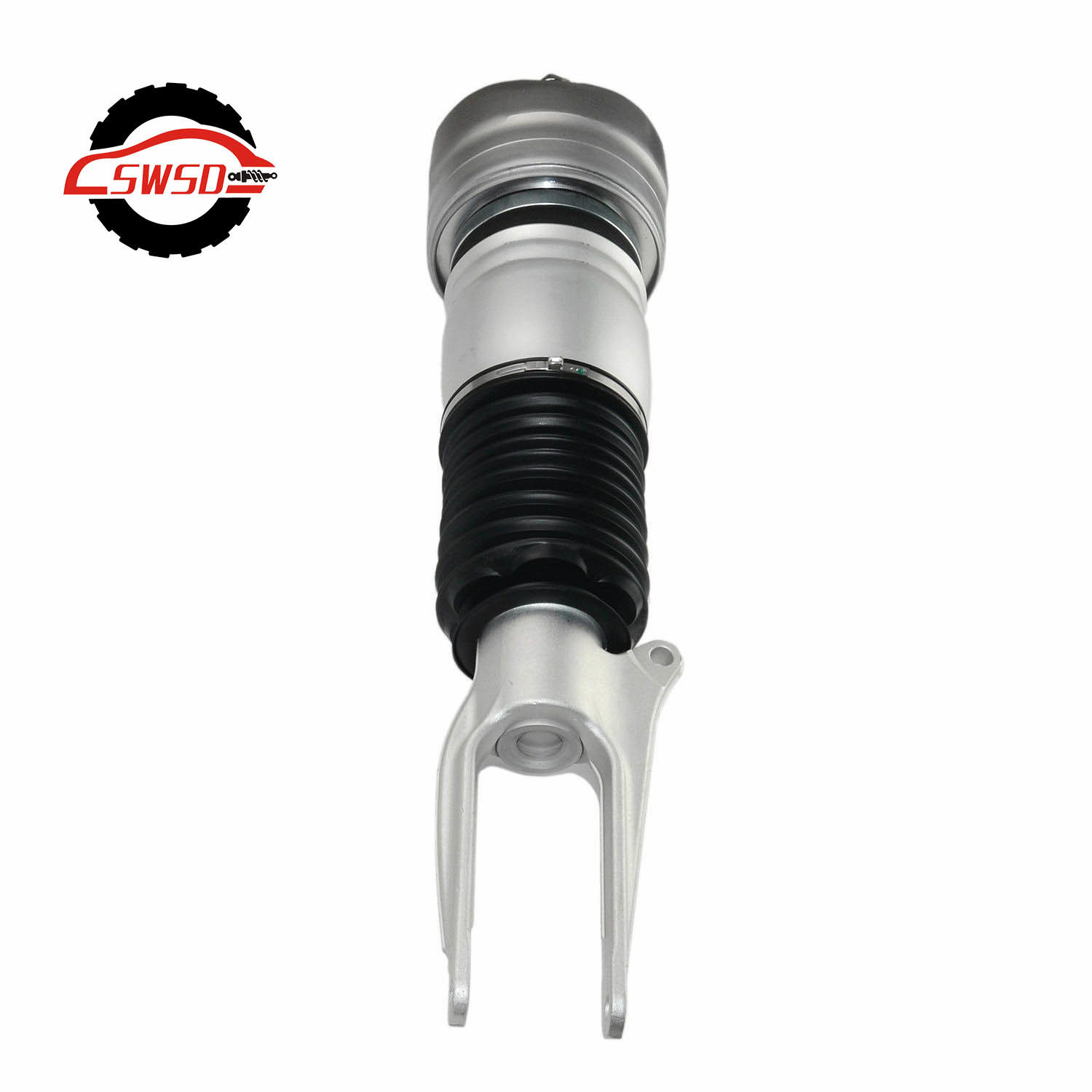

This front left air strut 97034305134 for the Porsche Panamera 970 is manufactured in accordance with the quality management ISO / TS 16949: 2009.

Each air strut was examined according to a test report.
That's the big difference to the simple replicas!
Only a 100% tested product and the professional installation of it ensures that your vehicle again offers the same ride comfort as with an original spare part.

- Active inner valve in the shock absorber.
This means that this shock absorber reacts actively to the driving comfort you choose.
You get an air suspension damper with CDC damping function (continuous damping control).
Hydraulic shock absorber, with internal valve.
Fed by a complex sensor system, the control unit changes its mode of operation
-depending on the surface of the road,
-depending on the style of driving,
-depending on the mode of drive dynamics system "Drive Select".
.
Can be installed in the following vehicles:

Porsche Panamera (970) 2014 - 2016
Porsche Panamera S (970)
Porsche Panamera GTS (970)
Porsche Panamera Turbo (970)
.
Original spare part number OE:
97034305134, 97034305135, 97034305137
Reference: AS-3038

Scope of delivery:
Air suspension strut front left

WARNING!
The vehicle suspension system is based on a combination of electronic level control and nitrogen 5 or CO2 filled air springs.
After replacement of any spare parts, such as compressor, air spring, valve and / or strut, the output pressure in the system MUST have 17 bar.
A compressor can only partially compensate for the pressure difference.
You MUST follow the appropriate car manufacturer's installation instructions.
If the appropriate car manufacturer's installation instructions and specifications are not followed correctly, your system will continue to show errors or will malfunction.
If our parts are damaged in the process if will void any warranty or guarantee.
Normally the complete emptying of the system is required under car manufacturer's installation instructions .
After replacement of the corresponding spare part, the system MUST be recharged with CO2 or nitrogen 5 in accordance with the requirements of the car manufacturer.
This can only be done with appropriate software and appropriate special tools.
After this procedure, you can start further steps, such as calibration of the vehicle's suspension leveling control system.


Important:

-Never lower vehicle with air Discharged from air-suspension bellows!
-Check air suspension system for leaks.
-Lower vehicle with pressurized air spring modules from the lifting platform.
Verify after repair if the system is completely sealed.
The easiest way this is by parking the vehicle determine. Wait for the automatic readjustment of the system, if your vehicle has this feature. All heights the air are supported accurately measure from the ground to the lower edge of fenders and note. The next day, check and compare these heights.
Even a small deviation of the distances leads to permanent damage to the compressor and the valves.

Product Photos

Car Model:

Porsche Cayenne(955) Right Front 955 343 034 21

Porsche Cayenne(955) Left Rear 955 333 034 20

Porsche Cayenne(955) Right Rear 955 333 034 21

Porsche Cayenne Left Front 7P6 616 039N

Porsche Cayenne Right Front 7P6 616 040N

Porsche Cayenne Left Rear 7L6 616 019K

Porsche Cayenne Right Rear 7L6 616 020K

Porsche970 Panamera Left front

9703 4305 115
9703 4305 108
9703 4305 109
9703 4305 110
9703 4305 111
9703 4305 112
9703 4305 113
9703 4305 114

Porsche970 Panamera Right front

9703 4305 208
9703 4305 209
9703 4305 210
9703 4305 211
9703 4305 212
9703 4305 213
9703 4305 214
9703 4305 215

Porsche970 Panamera Left front 970 343 051 34

Porsche970 Panamera Left front 970 343 052 34
